Definition Electronic Configuration



The distribution of electrons in the available orbitals in the order of increasing energy is called Electronic Configuration.



The electronic configuration describes the exact position of electron in extra-nuclear region i.e. available orbitals. Thus electronic configuration is the filling up of orbitals in the sequence of increasing energy.



Some Unexpected Electronic Configuration



1.   The elements of group VIB i.e. Cr, Mo and W have expected valence shell electronic configuration (n-1)d⁴, ns² but in practise their configuration is (n-1)d⁵, ns¹.

e.g.

Chromium has 24 electrons and its expected electronic configuration is 1s², 2s² 2p⁶, 3s² 3p⁶, 3d⁴, 4s² but in reality the configuration is 1s², 2s² 2p⁶, 3s² 3p⁶, 3d⁵, 4s¹.



2.     The elements of group IB i.e. Cu, Ag and Au have expected valence shell electronic configuration (n-1)d⁹, ns² but in practise their configuration is (n-1)d¹⁰, ns¹.

e.g.

copper with Z = 29 has the electronic configuration of 1s², 2s² 2p⁶, 3s² 3p⁶, 3d¹⁰, 4s¹ instead of 1s², 2s² 2p⁶, 3s² 3p⁶, 3d⁹, 4s¹



Factors responsible for the extra stability of half-filled and complete filled sub-shells



(i)       Symmetrical Electronic Distribution

The symmetrical electronic distribution leads to stability. Thus the electronic configuration with all the orbitals of the same subshell are either fully filled or exactly half filled are more stable due to symmetrical distribution of electrons.



(ii)  Exchange energy (Cause of Extra Stability of Half-filled & Completely Filled Orbitals)

The electrons with parallel spins present in the degenerate orbitals (orbitals of same subshell having equal energy) tend to exchange their position. The energy released during this exchange is called exchange energy. The number exchanges that can take place is maximum when the degenerate orbitals are exactly half-filled or fully filled. As a result, the exchange energy is maximum and so it the stability.

The exchange energy is represented as

It is both in backward and forward direction which is counted as 1.



If more number of exchanges are possible, more exchange energy is released. More number of exchanges are possible only in the case of half-filled and fully filled configurations. More are the number of electrons with identical spin, more are the number of ways of exchanging with other electrons, more will be the exchange energy released which lead to greater stability.



For example

If the electronic configuration of chromium was [Ar] 3d⁴ 4s², then electrons could be exchanged in only six ways releasing less exchange energy. (i.e. In case of 3d⁴ 4s² configuration in Cr; the electron no.1 can exchange its position with electrons nos. 2, 3 & 4 i.e., in 3 ways. The electron no. 2 can exchange 2 ways with electrons 3 & 4 (with electron 1 has already been considered). The electron no.3 can exchange only in 1 way (as exchanges with electrons 1 & 2 has already been calculated). Hence there are 3+2+1=6 ways of exchange are possible in 3d⁴ arrangement).

From spectroscopy, the electronic configuration of chromium is [Ar] 3d⁵ 4s¹. in 3d⁵ configuration, the total possible ways of exchange is 4+3+2+1=10. The 3d orbital is half filled and there are ten possible exchanges. Hence, exchange energy for the half filled configuration is more This increases the stability of half filled 3d orbitals. Therefore, 3d⁵ configuration is more stable than 3d⁴ configuration

The reason for this is, Cr with 3d⁵ configuration is half filled and it will be more stable. Chromium has [Ar] 3d⁵ 4s¹ and not [Ar] 3d⁴ 4s² due to the symmetrical distribution and greater exchange energies of d electrons.

Methods of Writing Electronic Configuration



1.   Orbital Method

In this method, the electrons present in respective orbitals are denoted.



Cl (17) = 1s², 2s² 2p⁶, 3s² 3p⁵    OR [Ne] 3s² 3p⁵



2.   Shell method

In this method, the number of electrons in each shell is continuously written



Cl (17) = 1s², 2s² 2p⁶, 3s² 3p⁵

                 K²,    L⁸,        M⁷

                 2,      8,         7

3.   Box Method

In this method, each orbital is denoted by a box and electrons are represented by half-headed (↿⇂) or full-headed arrows. An orbital can occupy a maximum of two electrons



4.   Core Noble gas EC Method

In this method, the electrons present in the valence shells are shown while electrons in core shells are shown by writing nearest noble gas in square bracket.



Cl (17) = 1s², 2s² 2p⁶, 3s² 3p⁵    OR [Ne] 3s² 3p⁵



Exceptions in Electronic Configurations



Rules for Electronic Configuration

The electronic configuration in available orbitals is governed by following Rules or Principles:



1.   Pauli’s Exclusion Principle.

2.   Auf-Bau Principle.

3.   (n + l) Rule or Wiswesser Rule.

4.   Hund’s Rule of Maximum Multiplicity.

Pauli’s Exclusion Principle



Introduction and Statement

It is an empirical rule but agrees fully with experimental observations (and facts) but has no mathematical explanation. It was put forward by Wolfgang Pauli in 1925. It is used to assign the values of four quantum numbers to an electron of an atom.



No two electrons in an atom (in the same orbital) can have the same set of four quantum numbers. Thus an orbital can contain a maximum of two electrons with opposite spins.

In other words,

the set of four quantum numbers associated with an electron acts as a unique “address” for that electron in an atom, and no two electrons can have the same address.



The two electrons in the same orbital will have identical values of n, l and m but due to opposite electron spin (clockwise and anticlockwise), they must have different values of spin quantum number (+ ½ and - ½).

Theoretical Proof

An electron is an spinning negative charge and an spinning charge is magnetic, therefore, an spinning electron can be considered to act like a tiny magnet. Two electrons with opposite spins in an orbital will behave as two tiny magnets with opposite poles towards each other and thus attract each other.



Electrons with same spin repel each other and occupy different orbitals and if they have to occupy the same orbital, they must have opposite spins. This is in accordance with Pauli’s exclusion principle.



Examples

In He (Z = 2), there are two electrons in K-shell. It can be seen that these two electrons have same values for n, l and m but due to opposite electron spins, they have different value of spin quantum number.

Applications or Significance

1. According to Pauli’s exclusion principle, an orbital can contain maximum of two electrons with opposite spins, as spin quantum number (m_s) has only two possible opposite values.



2. Thus electrons occupying the same orbital have opposite spin i.e. spin gets opposite when electrons pair up after occupying singly.



3.    Two electrons in the same orbital with opposite spins are called paired electrons, symbolized as ↿⇂ . An orbital which is occupied by an electron pair is called Completely Filled Orbital.



4.  An atom with x number of electrons therefore has at least x/2 orbitals, though it might have more if some of its orbitals are only half filled.

auf-bau principle/ Building up Principle/Diagonal Rule



Introduction and Statement

Auf Bau (pronounced as of bow) is a German word meaning “To construct” or “To build up” or “building up”. The Auf Bau Principle gives us a sequence in which various orbitals are filled with electrons i.e. it governs the sequence of various orbitals for feeding in electrons in them.



It is assumed that in an atom all the orbitals are vacant and electrons fill these orbitals in the order of increasing orbital energy starting with 1s orbital.

                                                                        OR

In the ground state of an atom, the electrons tend to occupy the available orbitals in the increasing order of orbital energies starting with 1s orbital i.e. orbitals of minimum energy are filled up first with electrons and only then the orbitals of higher energy are filled. Thus electrons first enter into the lowest energy sub-shell, then enter into the next higher energy sub-shell.



Electrons are added one by one to the various orbitals in order of their increasing energy starting with the orbital of lowest energy. The increasing order of energy of various orbitals is



1s < 2s < 3s < 3p < 4s < 3d < 4p < 5s < 4d < 5p < 6s < 4f < 5d < 6p < 7s < 5f < 6d < 7p

Explanation

Hypothetically, electronic configuration of atoms can build up by placing the electrons in the lowest energy orbitals until the total number of electrons added is equal to the atomic number “Z”. The notation used to indicate the number of electrons present in a given orbital is nl^x. Where,

n =  1, 2, 3 .............

l  =  s, p, d or f

x =  number of electrons actually present.

Diagrammatic Representation

The order of filling or building up of orbitals is simplified by following diagram in which the orbitals are cut diagonally; the one cut first is filled first.

Order of Filling

The sequence of increasing orbital energy is given below:

Wiswesser’s Rule OR (n + l) Rule/Madelung Rule/Klechkowsky Rule



Significance

The rule is named after William Wiswesser. This rule helps in determining the stable electronic configuration by giving sequence of energies of orbitals, hence it guides in the order of filling of orbitals by electrons.

Statement

In building up the electronic configuration of the atoms, orbitals with lowest value of n + l fills first; when two orbitals have the same value of n + l, then the orbital with least n value is filled first.

[Here n and l stands for the principal and azimuthal quantum No. respectively].



In multi-electron atom, subshell having higher value of (n+ l) has higher energy as compared to subshell having lower value of (n+ l). If (n+ l) value is same then energy order of subshell is decided by the value of “n”. Greater the value of “n”, more will be the energy.

Explanation of (n + l) Rule

According to Wiswesser Rule, the order of filling of sub-shells (orbitals) is determined by increase value of n + l.  An electron enters first in that orbital which has lowest n + l value.  If two orbitals have the same n + l values, the electron will go into the orbital with least n value. Straight filling of electrons take place up to Argon (Atomic No. = 18) i.e. order of filling of electrons in the main energy level is same to order of orbital.



Sub-shell with lower value of n + l will have lower energy and also electrons enter first in that sub-shell. If n + l value is same for two or more sub-shells then lower n value will have lower energy.

Examples of (n + l) Rule

1.   In case of potassium (Z = 19), the electron might go into 3d or 4s orbital.  This will be decided by finding out n + l value for 3d and 4s orbital:

For 3d orbital;  n  =  3 and  l  =  2;  value of n  +  l  =  3 + 2 = 5

For 4s orbital;  n  =  4 and  l  =  0;  value of n  +  l  =  4 + 0 = 4

Hence 4s orbital, which has the lower value of n + l than 3d orbital, will be filled first.



2.   In case of Scandium (Z = 21), electron will enter into 3d or 4p orbitals.

For 3d orbital;  n  =  3 and  l  =  2;  value of n  +  l  =  3 + 2 = 5

For 4p orbital;  n  =  4 and  l  =  1;value of n  +  l  =  4 + 1 = 5

Hence 3d orbital fills before 4p orbital, although n + l values for both are same. But 3d orbital has lower ‘n’ value.



Energy Level Sequence of Sub-shell

Increasing Energy Order of Subshell

1s < 2s < 2p < 3s < 3p < 4s < 3d <  4p < 5s <  4d <  5p < 6s < 4f < 5d < 6p < 7s < 5f < 6d < 7p

Exceptions to the rule in the transition metals

The valence d-subshell "borrows" one electron (in the case of palladium two electrons) from the valence s-subshell.

For example, in copper ₂₉Cu, according to the Madelung rule, the 4s orbital (n + ℓ = 4 + 0 = 4) is occupied before the 3d orbital (n + ℓ = 3 + 2 = 5). The rule then predicts the electron configuration 1s² 2s² 2p⁶ 3s² 3p⁶ 3d⁹ 4s², abbreviated [Ar] 3d⁹ 4s² where [Ar] denotes the configuration of argon, the preceding noble gas. However, the measured electron configuration of the copper atom is [Ar] 3d¹⁰ 4s¹. By filling the 3d orbital, copper can be in a lower energy state.

Exceptions among the lanthanides and actinides

The valence d-subshell often "borrows" one electron (in the case of thorium two electrons) from the valence f-subshell. For example, in uranium ₉₂U, according to the Madelung rule, the 5f orbital (n + ℓ = 5 + 3 = 8) is occupied before the 6d orbital (n + ℓ = 6 + 2 = 8). The rule then predicts the electron configuration [Rn] 5f⁴ 7s² where [Rn] denotes the configuration of radon, the preceding noble gas. However, the measured electron configuration of the uranium atom is [Rn] 5f³ 6d¹ 7s².



A special exception is lawrencium ₁₀₃Lr, where the 6d electron predicted by the Madelung rule is replaced by a 7p electron: the rule predicts [Rn] 5f¹⁴ 6d¹ 7s², but the measured configuration is [Rn] 5f¹⁴ 7s² 7p¹.



Hund’s Rule of Maximum Multiplicity



Introduction

The orbitals given by a particular value of ‘l’ if n is same, have the same energy and such orbitals of equal energy are called Degenerate Orbitals. The filling of degenerate orbitals with electrons takes place according to Hund’s Rule of Maximum Multiplicity.



Statement

When degenerate orbitals (having equal energy) are available, electrons occupy them singly (as they tend to be avoid each other due to repulsion) with parallel spin. The pairing of electrons start when all degenerate orbitals are singly occupied i.e. spin of electrons get opposite when they pair up after occupying singly.

OR

Electrons are distributed among degenerate orbitals of a sub-shell in such a way that maximum number of electrons occupies them singly with same spin. When all orbitals are singly occupied only then the pairing of electrons commences [i.e. spin gets opposite when electrons pair up after occupying singly.]

OR

This rule is based on the fact that electrons, being of the same negative charge, repel each other and hence tend to remain far apart from each other as much as possible if they have the choice to do so.  Consequently, the electrons in the orbitals of equal energy will distribute themselves in different orbitals in order to be as far apart as possible.



Explanation

Electron enters orbitals of same energy level i.e. particular sub-shell (in 2p, 3d, 4f etc.) lonely and their spin will be same. After entering single electron in each orbital in a particular sub-shell, electrons enter on those half-filled orbitals and make pair but their spin will be opposite.

Examples

(i)        2p² means in 2p sub-shell (i.e. in three 2p orbitals) there are two electrons.

(ii)       2p⁵ means in 2p sub-shell (i.e. in three 2p orbitals) there are five electrons.

(iii)      The electronic configuration of carbon (Z = 6)   =  1s^↿⇂, 2s^↿⇂ , 2p_x^↿⇂ 2p_y  2p_z (Degenerate orbitals).

This configuration is not according to Hund’s Rule of maximum multiplicity. Since orbitals of equal energy (p_x, p_y and p_z) called Degenerate orbitals are available, so electrons must occupy them

separately with parallel spin. Second electron of ‘p’ will go to 2py.  Thus correct electronic configuration according to Hund’s Rule is:

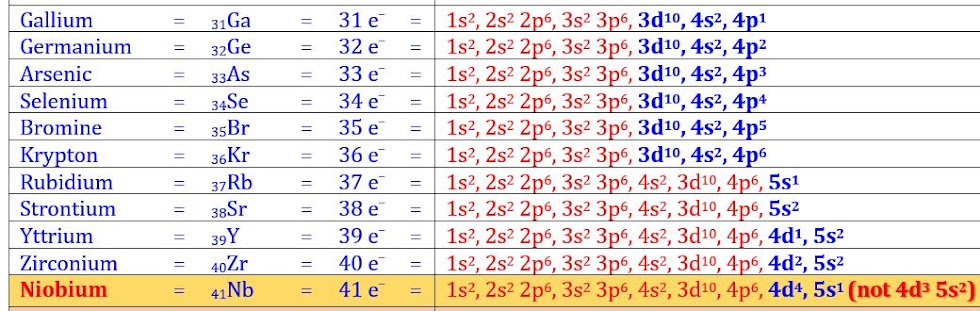

Electronic Configuration of first 50 Elements



Order of filling:

1s, 2s 2p, 3s 3p, 4s, 3d, 4p, 5s, 4d, 5p,

6s, 5d¹, 4f, 5d, 6p, 7s, 6d¹, 5f, 6d, 7p
